HELJAN 89121 / draaischijf 27.4 cm DCC-digitaal HELJAN 89121 / draaischijf 27.4 cm | HEL89121
€ 399,00
Levering 2-3 Werkdagen

HELJAN 89121 / draaischijf     27.4 cm

DCC - ready

Detailed deck with Weathered one-piece pit with motorised drive gear. Turntable will hold locomotive up to 320mm (12in) long and has programmable indexing for 58 positions. The track can be laid in any configuration up to the turntable.

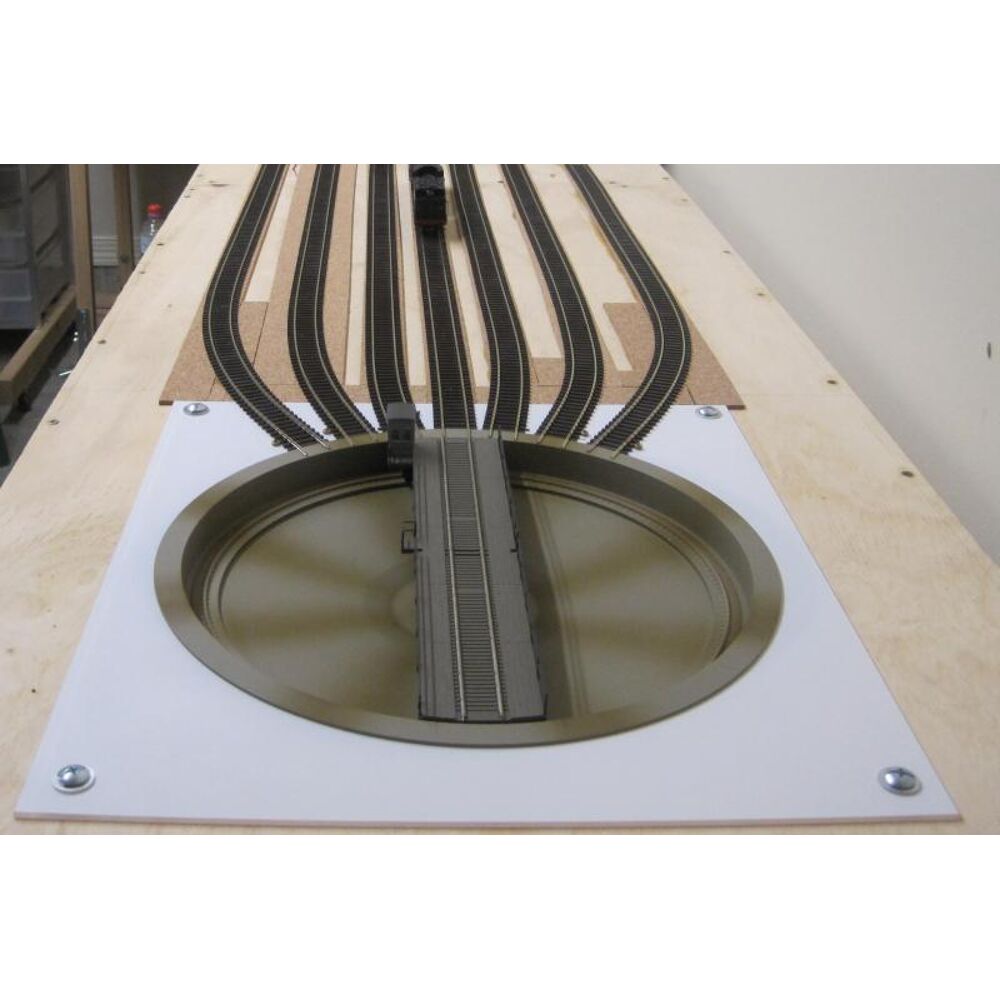

The turntable deck requires hole in baseboard of 350mm with 57mm clearance below the pit.

Turntable will run on analogue or digital systems.  No decoder required - the system will automatically recognise the operating system.  Full intructions are included.

Hoe programeren met de EcoS van ESU : Hoe programmer met de ESU EcoS ?



Technische omschrijving

  • Overall diameter 349mm
  • For installing into a baseboard, Diameter of turntable circle is 324mm and overall depth 45mm

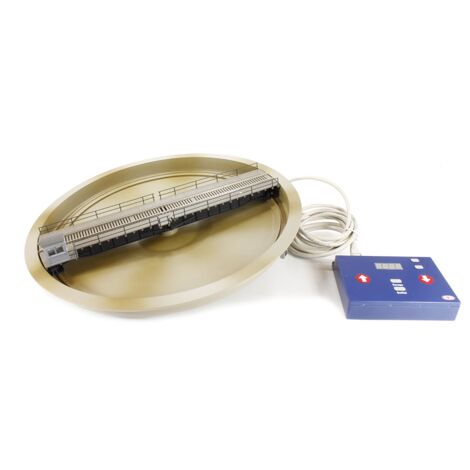

  • Can be controlled by included controller (recommended) or DCC accessory decoder
  • Transformer not included but can be powered using
    • 16V DC AUX/Accesory outputs on most analogue controllers
    • DCC Track power, with no need for an additional transformer
    • A suitable DC controller with 15vAC 500mA output
  • Controller has screw terminals for connecting power supply and track output for the turntable.
